Features
1.Worm gear provides durability and silence in motor operation.
2.Clutch device for power failure,use a special key release clutch,operate the gate manually.
3.Stop working when gate meets obstacle.
4.Soft start and soft stop ,avoid some accidents
5.Copper motor and gear worm for stable performance and longer working life
6.Adjustable opening/closing interval between master and slave gate.
7.Adjusting residence sensitivity

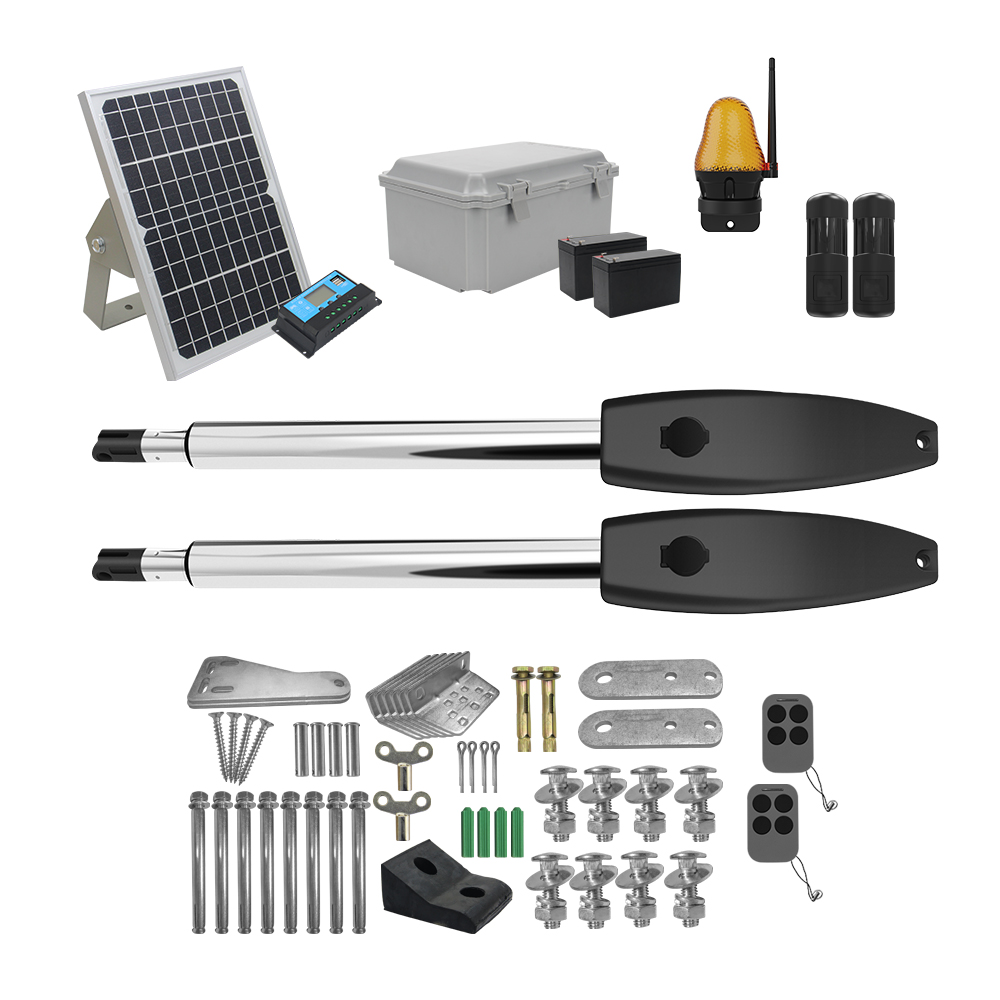

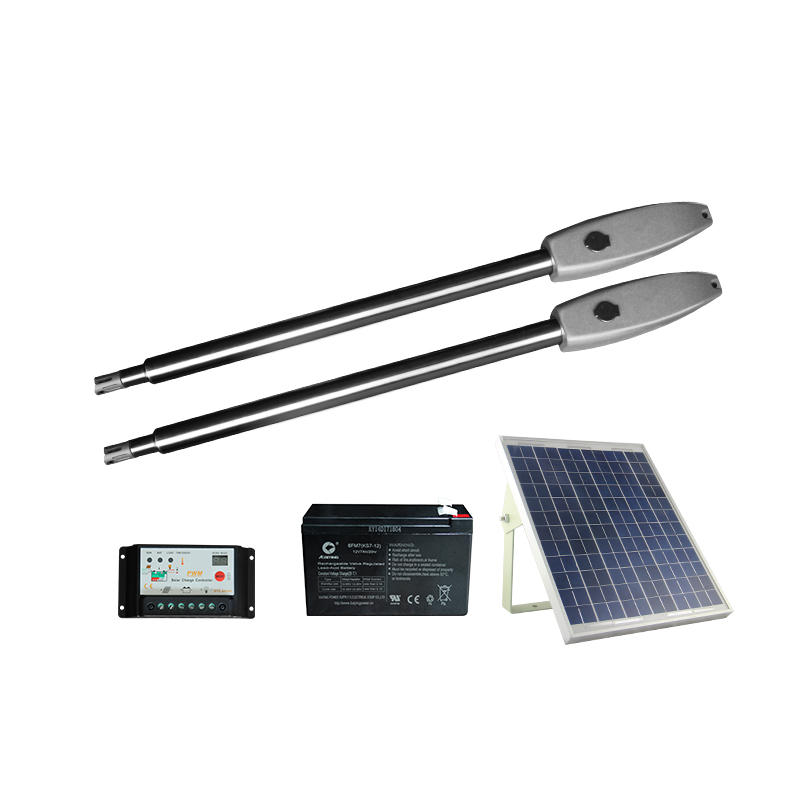

8.24VDC Swing gate opener can work for solar power system and back up battery.
One Set

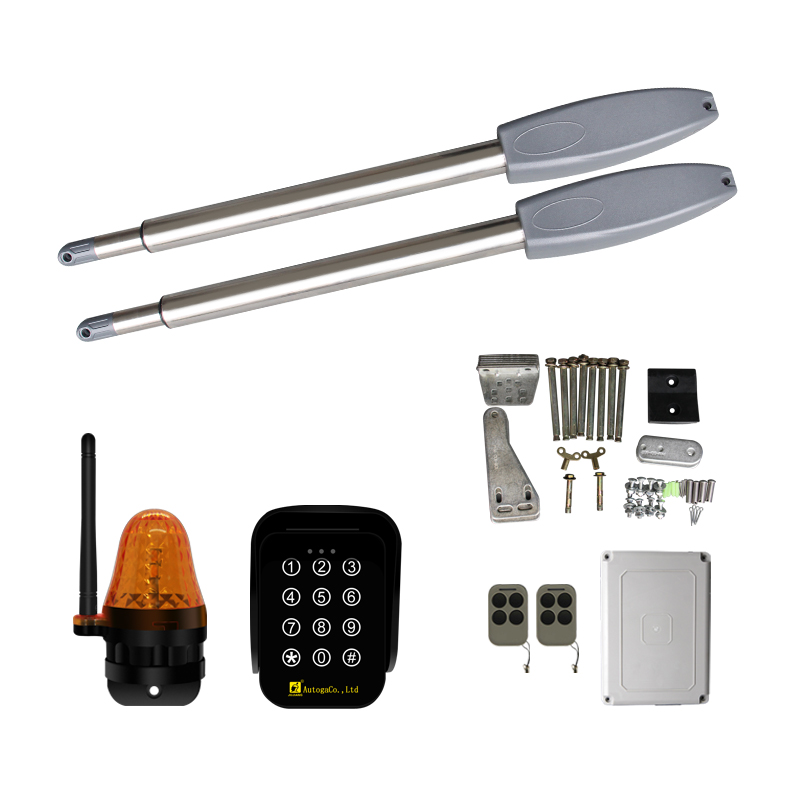

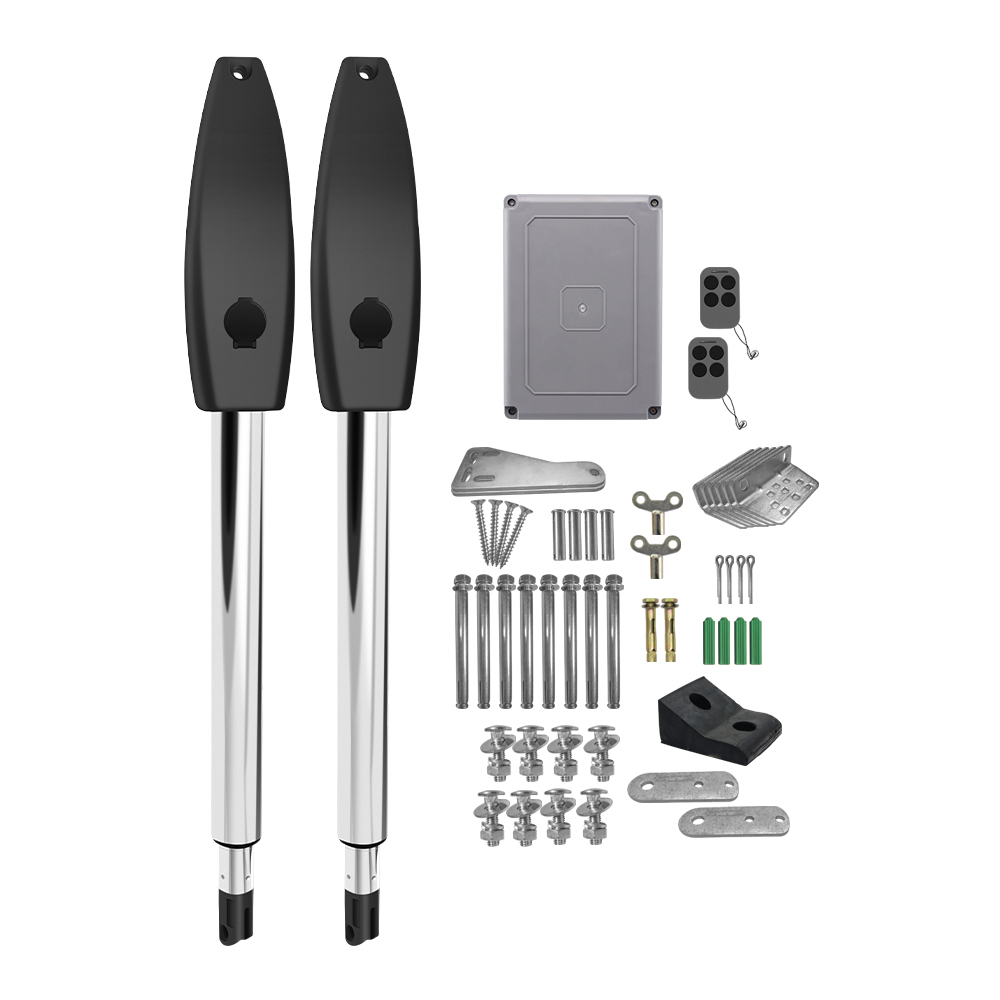

Standard set include:
2 x DC gate motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
Specs
Model | PKM-C022-2 | ||
PKM-C022 | PKM-C02-2 | PKM-C022-5 | |
Input Power | 220VAC±10% / 120VAC±10% | ||
Motor Voltage | 24VDC 60W*2 | ||
Max Single-leaf Weight | 300KGS | 300KGS-350KGS | 350KGS |
Arm's Max travel | 300 mm | 400 mm | 600 mm |
Max Single-leaf Length | 2.5meters | 3.5meters | 5meters |
Rotational Speed | 300 RPM | 300 RPM | 300 RPM |
Dual Swing Gate Gross Weight | 17kg | 17.5kg | 18kg |
Arm's Extended Speed | 2.4 cm/s | ||
Continue Running Time | 5 minutes | ||
Environment Temperature | -20°C ~ +50°C | ||
Max Gate Open Angle | 110 degree | ||
Protection Class | IP55 |
Overview

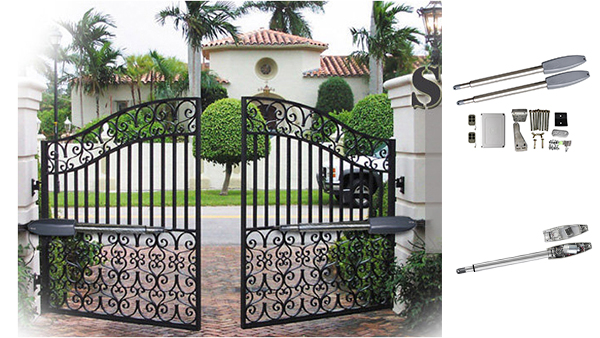

Single Dual Arms Auto Gate Motor Opener Swing Automatic Door Operator
DC24V solar power dual single arm actuator swing gate motor opener with max single leaf weight 350kg.
If you are interested in our products and want to know more details,please leave a messag here,we will reply you as soon as we can.
