Overview

PYM-H 300KG Cost-effective

• Model Number : PYM-X2208

• Type : Automatic Door Operators

• Working voltage : AC 110-240V ,50-60Hz

• Max load weight : 300KG

• motor torgue : 12N.m

• Running speed : 12m/min

• Remote control distance : ≤50M

• Thrust : 1100N sliding gate opener

• Output Gear Number : z=16

• Environment temperature : -25°C ~ +55°C

• Working humidity : ≤85%

   Features

PYM-X   300KG Sliding gate motor main features

1.The structure of integrated mechanic part and electronic part with built-in control panel, no any external controllers needed

2.Emergency release key in case of power failure

3.Gate auto stop and re-open when an obstacle is encountered

4. Foundation supplied with motor , easier for installation

5. Stop/Reverse in case of obstruction during gate opening/closing

   Specs

• Cost Effective---Mini 300KG

• Easy installation---With Base

• Soft start and slow stop---Protect the motor

• Quick selection for gate open/close direction---Adapt to gate diversity

• Auto close time can be adjusted from approximately 3 to 120 seconds

Contact us for more information

Support to connect with Photocell, alarm signal light, wifi receiver, keypad, 12v battery and so on.

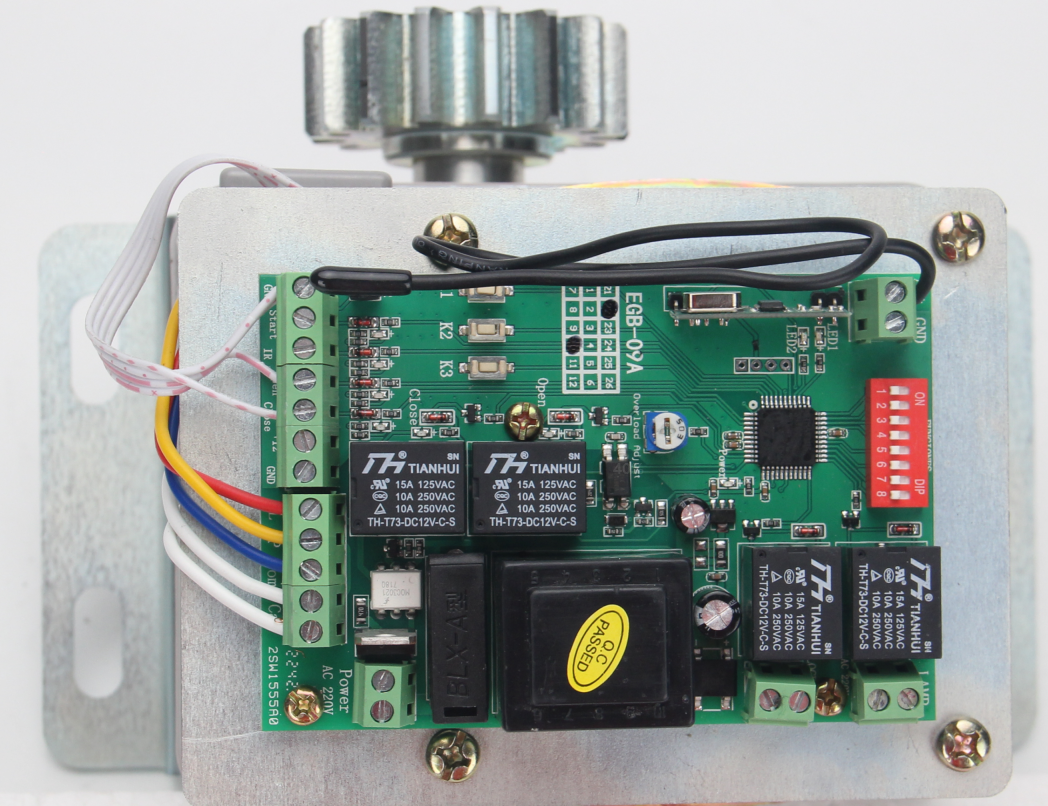

8 Dip Switch:

1: Magnetic signal mode

2: Command control mode

3: Soft start mode

4:Speed mode

5: RF remote control mode

6-7-8: Time programming: on/off 5-120s

3 Key Button:

K1---RF remote learn/remove code button

K2---Function settings / travel learning

K3---Function confirmation, restore factory settings

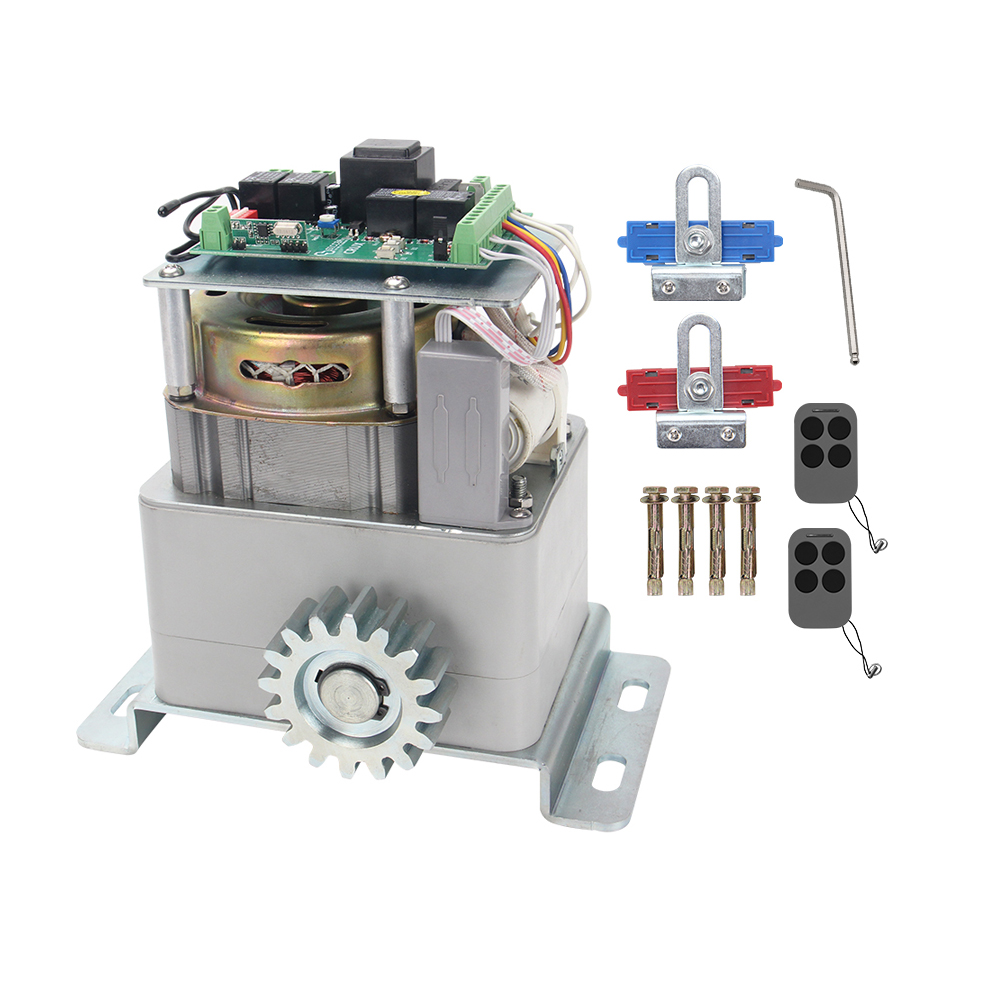

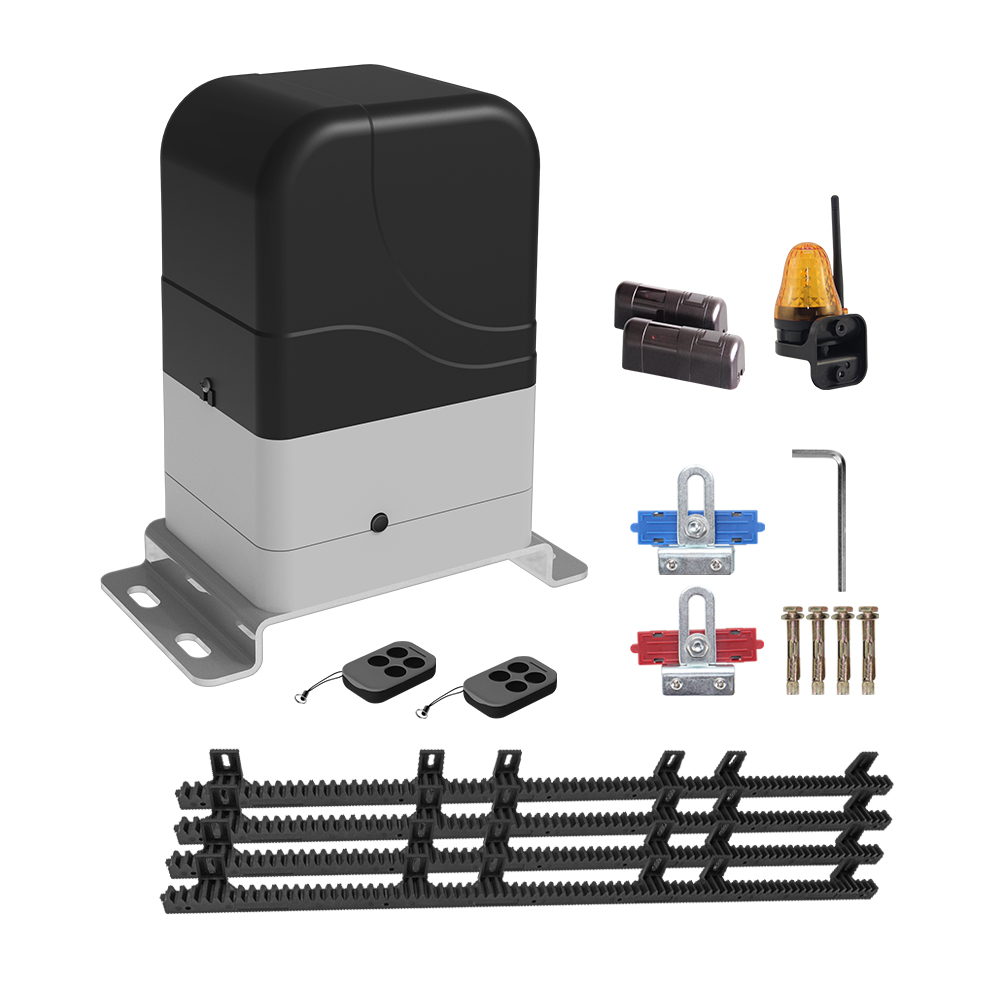

   One Set

One standard set ：

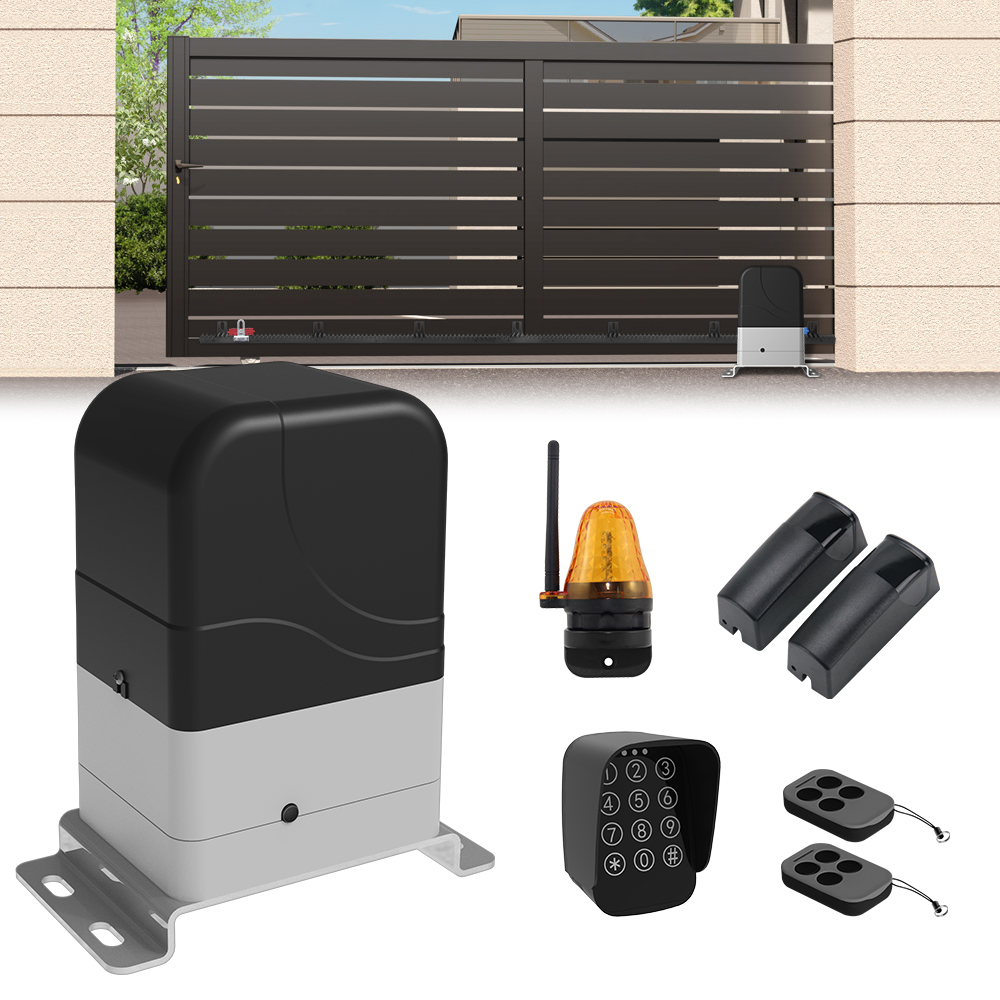

Sliding gate motor opener with keypad, gear rack, and other accsssories :

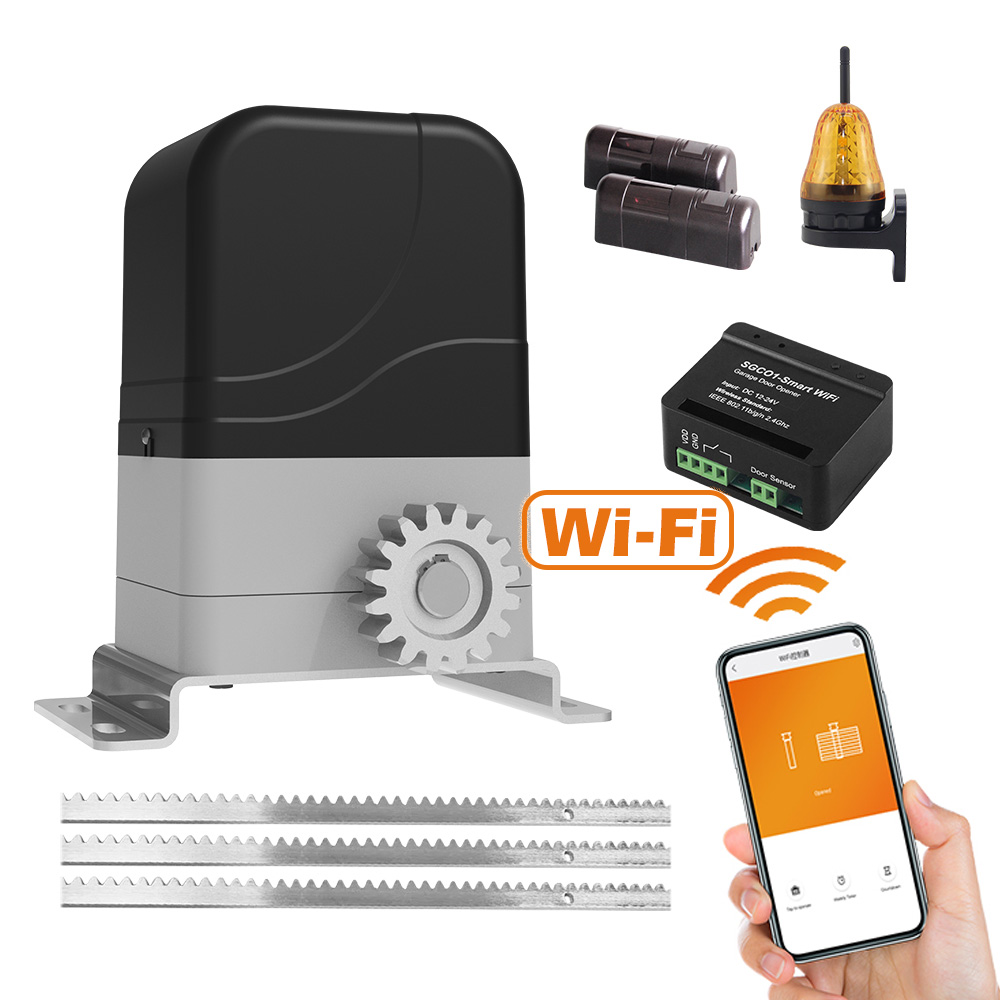

WiFi Smart Sliding gate motor opener set:
