This equipment is one of the auto gate openers launched by our company adopting a new design and integrated control system.
Our sliding gate opener has many features such as: low noise, light w

This equipment is one of the auto gate openers launched by our company adopting a new design and integrated control system. Our sliding gate opener has many features such as: low noise, light w

Model:
PYM-B2201
Loading Weight:
1000KGS
Control Board:
EG-32

Overview
Features
Specs

Features

 This equipment is one of the auto gate openers launched by our company adopting a new design and integrated control system.     Our sliding gate opener has many features such as: low noise, light weight, powerful starting torque, stability, reliability and is compact and stylish.
    The motor will still work for a short period of time using lower voltage.
    The control board has overload protection.When there is a power failure, the motor drive can be separated by the use of the clutch, by using the specified key the user has the ability to disconnect the clutch enabling the gate to be opened or closed manually.
     Using the optional infrared photocells the gate will automatically stop and re-open if an obstacle is sensed.
Model Number:JJ-PYM-B2201
Working voltage:AC 110-240V ,50-60Hz
Motor's power:120W 220V AC
Max load weight:1000KGS

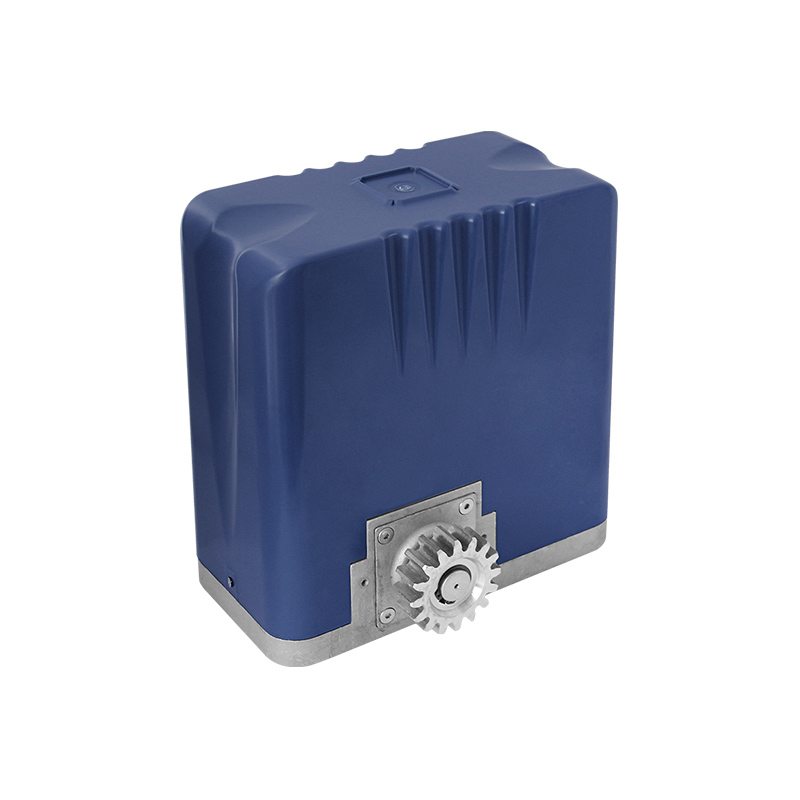

Output Gear:z=16
Code:Giant Rolling Code (120PCS)
Thrust:1200N
Working humidity:≤85%
Environment temperature:-20°C~+55°C
G.W:12KGS

1、AC/DC motor with built in control panel.
2、Built in manual override with 2 supplied unique override keys in case of emergency or power failure.
3、All metal gears make it durable and long lasting.
4、Soft start and soft stop.
5、Resistance sensitivity and auto-closing delay time adjustable .
6、Stop/Reverse in case of obstruction during gate opening /closing.
7、Reliable mechanical spring limit or magnetic limit optional.
8、Aluminium alloy base make it available for all kinds of bad weather.
9、Back up battery and solar system are available for DC sliding.
10、12 months guarantee; lifelong post sales service.


Control Board EG-32
Application：Used For DC Sliding Gate Opener
Power supply: DC24V
Modulation: ASK Modulation
Frequency: 433.92MHZ
Protection Fuse: 10A
Board Memory: 120 Rolling Code Transmitters
Output Voltage: DC12V-24V

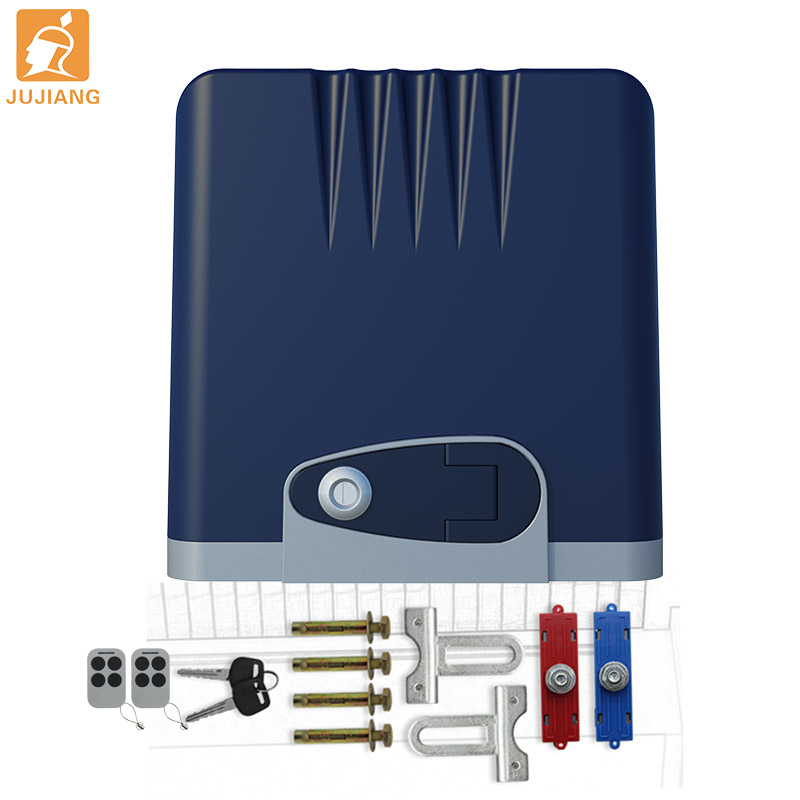

Standard Kit
- 2 remote controls
- 1 x Motor with built in Control Panel
- 2 x Remote Controls
- 2 x Manual Override Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual

Warranty:1 Year
After-sale Service:Online technical support
Project Solution Capability:total solution for projects
Application:Villa
Design Style:Modern
Place of Origin:Fujian, China
Brand Name:Jujiang gate opener
