1300KG 220V/110V Electric Slide Door Motor operator Automatic Sliding Gate Opener

1300KG 220V/110V Electric Slide Door Motor operator Automatic Sliding Gate Opener

Model:
PYM-H2206X/PYM-H1106X

Overview
Features
Specs

Overview

New high power sliding gate opener

This brand is specialized in researching driving source solution and intelligent control system for all kinds of gates.
H type will transform your regular sliding gate opens and closed on its own.
It is high-quality and perfect for residential, farm and ranch, etc. The 110V/60Hz 350W AC motor is powerful with a maximum weight of 2866 pounds (1300KG).


Innovative auto-close feature!
Featuring an auto-close time setting, this opener can be set to close in 12s, 24s, 36s and no automatic close function after it opens.
Support for adding more remote controls!
It comes with two remote controls. Conveniently, you can add 50 more remotes to control this system.
Easy to operate!
It’s the most user-friendly gate opener. The single button mode allows you to control the motor for the options OPENS/ STOP/CLOSE/ STOP. In case, the power is cut off; you can release the clutch and open the gate manually.
During the closing process, when the ray of the infra-red sensor is covered, your gate will open immediately to protect you and your property.
Built to last!
The aluminum abs cover and alloy base make this product durable and long-lasting. What’s more, when the motor keeps working more than 15 minutes and reach to 120-degree temperature, the motor stops itself to prevent any damage.
Pros
 * Works flawlessly for sliding gate
 * Easy to install, no need to hire electrician or welding
 * Convenient and simple to operate
 * Very quiet operation
 * Overheating protective
 * Mounting accessories included
 * Affordable price

Features

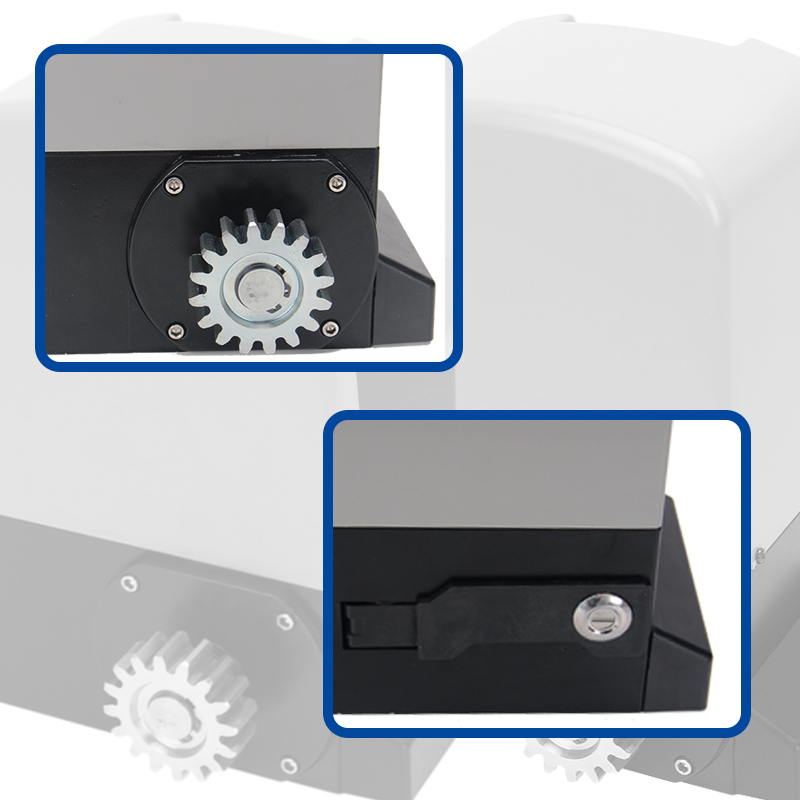

1.Manual release switch when power is cut off.
2.Meet the resistance to return function.
3.Motor gear self-locking.
4.External control or remote control.
5.Optional magnetic switch or spring switch.
6.Soft start to ensure a smooth start and smooth operation of the motor.

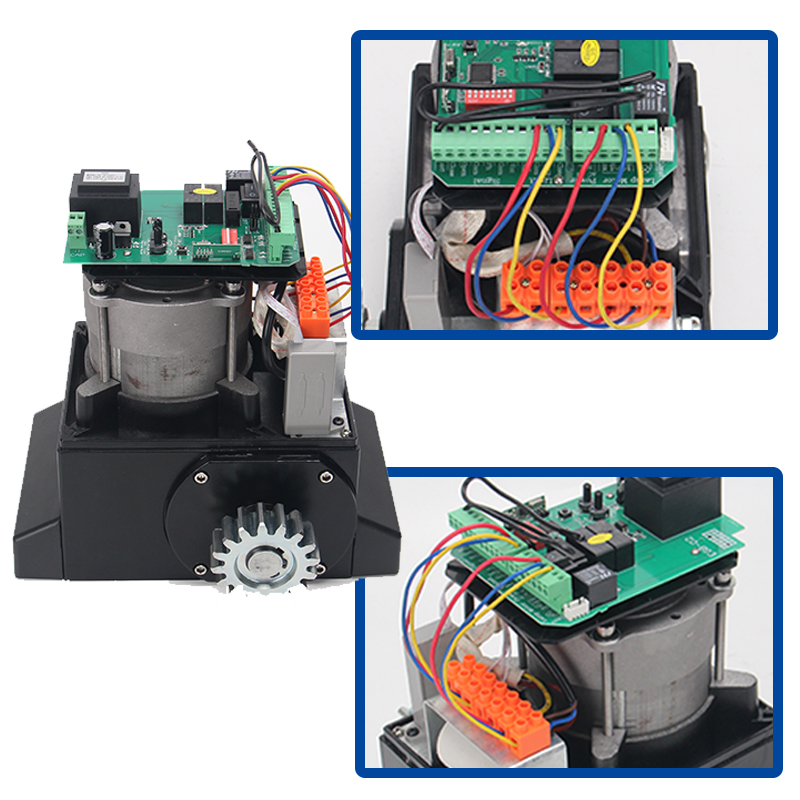

* Quick and easy installation thanks to the built in pre-wired control unit
* Anti-crushing protection is ensured by an electronic device directly controlling drive torque
* As the gear motor is non reversing, no electric locks need to be installed.

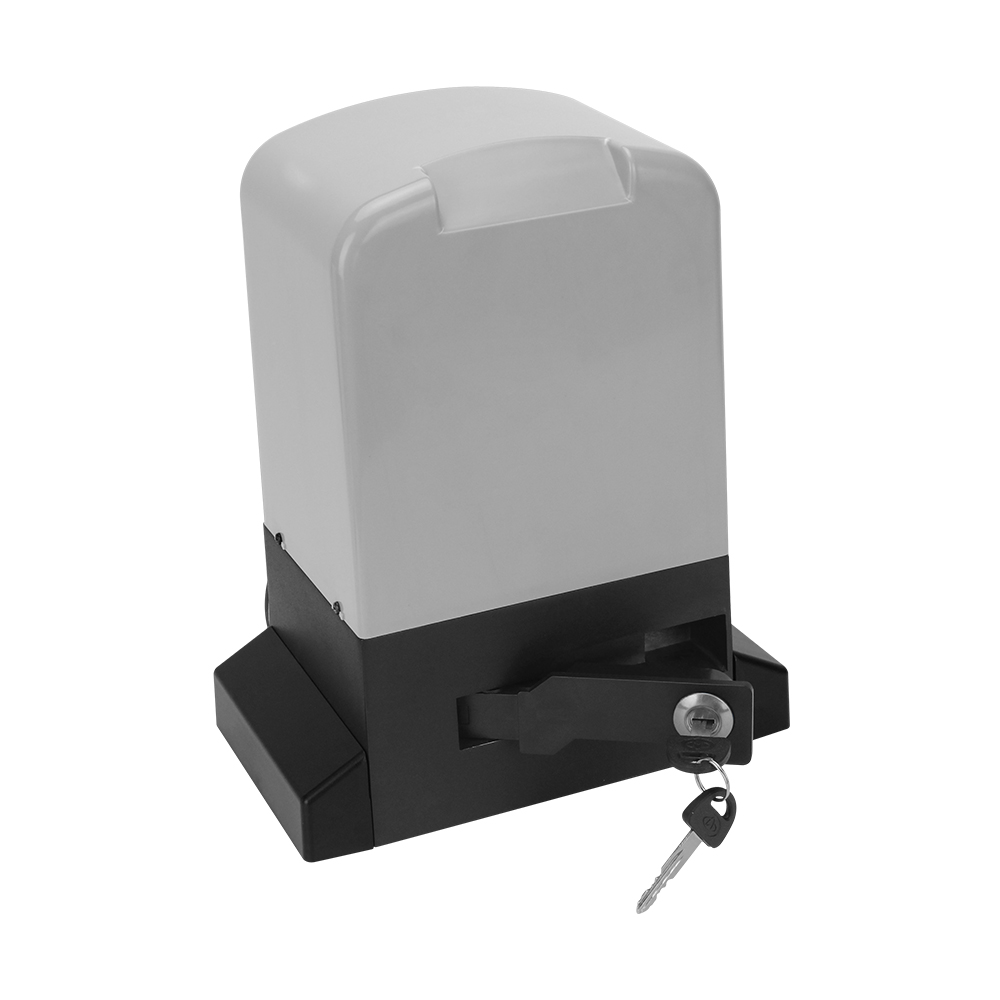

* In the event of a power cut, the rotation of the (key protected) release device makes it possible to open and close the gate manually
* Simplified "on display" programming

Specs

Model	PYM-H2206X	PYM-H1106X
Suitable gate weight	1300KG	1000KG
Motor voltage	AC 220V±10% 50Hz	110VAC±10% 60Hz
Limit switch	magnetic/spring	magnetic/spring
Base material	alloy aluminum	alloy aluminum
Rated power	370W	260W
Output torque	26 N.m	16 N.m
Motor speed	1600RPM
Output speed	50r/min±10%
Running speed	12m/min
Remote control distance	≤50meter
Output gear number	Z=16
Noise
Working temperature of motor	-20°C～ +55°C

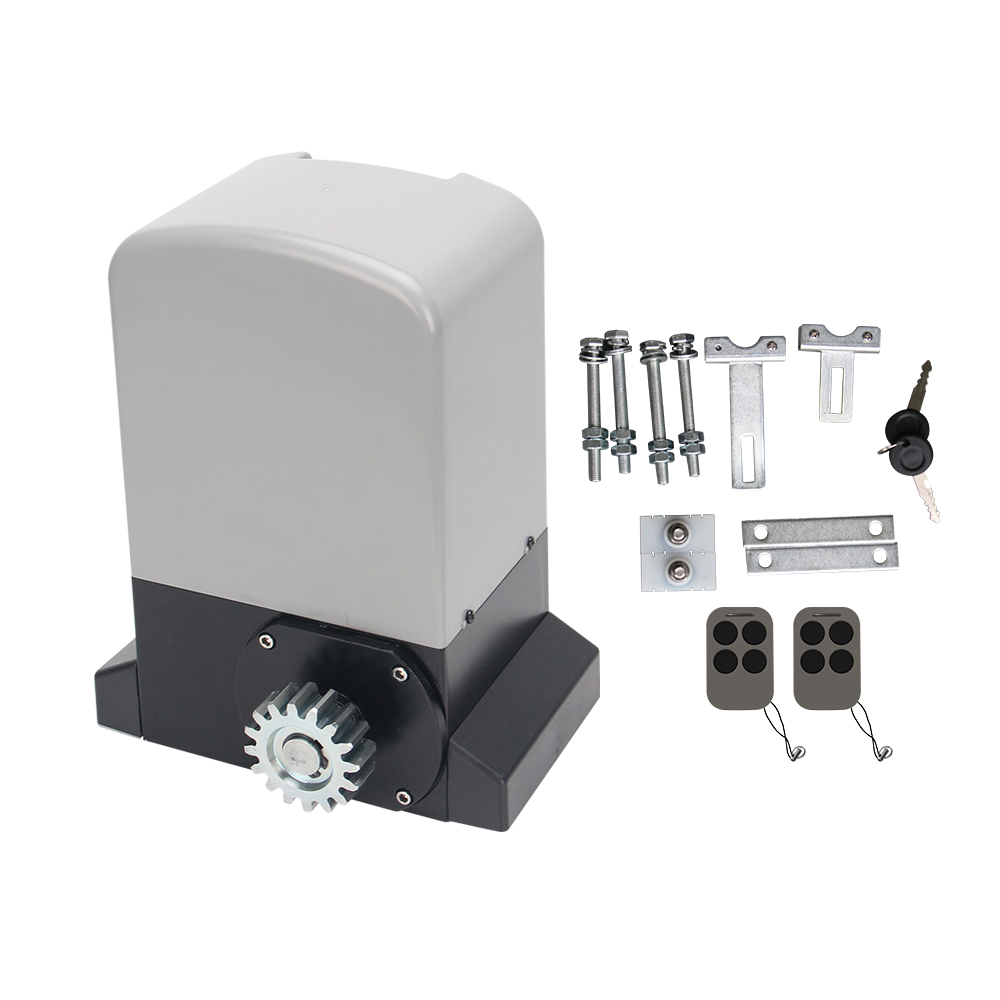

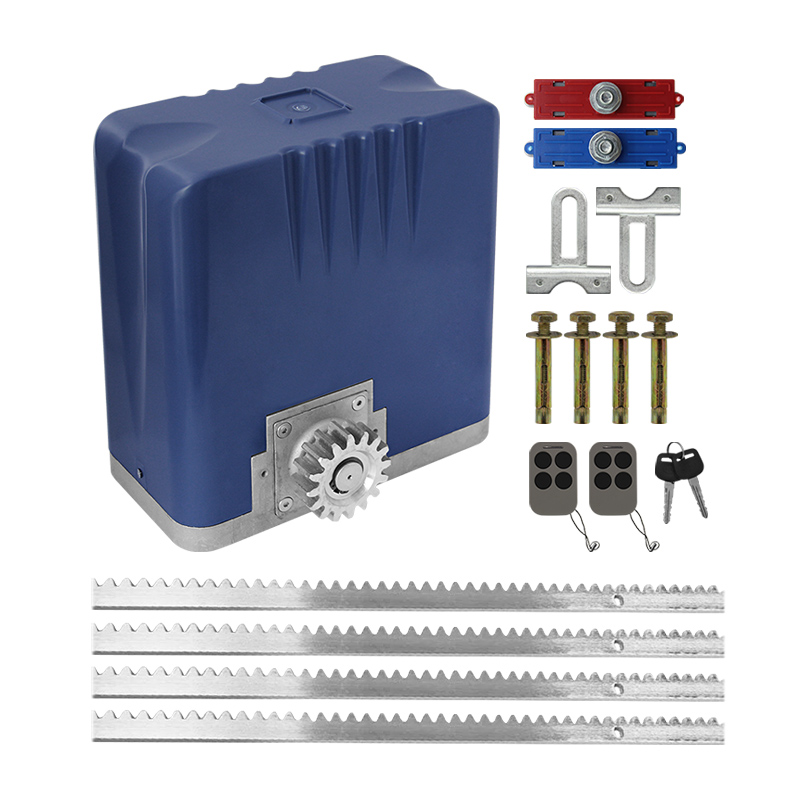

Complete kit

-1 x Motor with built in Control Panel
- 2 x Remote Controls
- 2 x Manual Override Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual

Leave A Message

If you are interested in our products and want to know more details,please leave a messag here,we will reply you as soon as we can.

NEW PRODUCTS

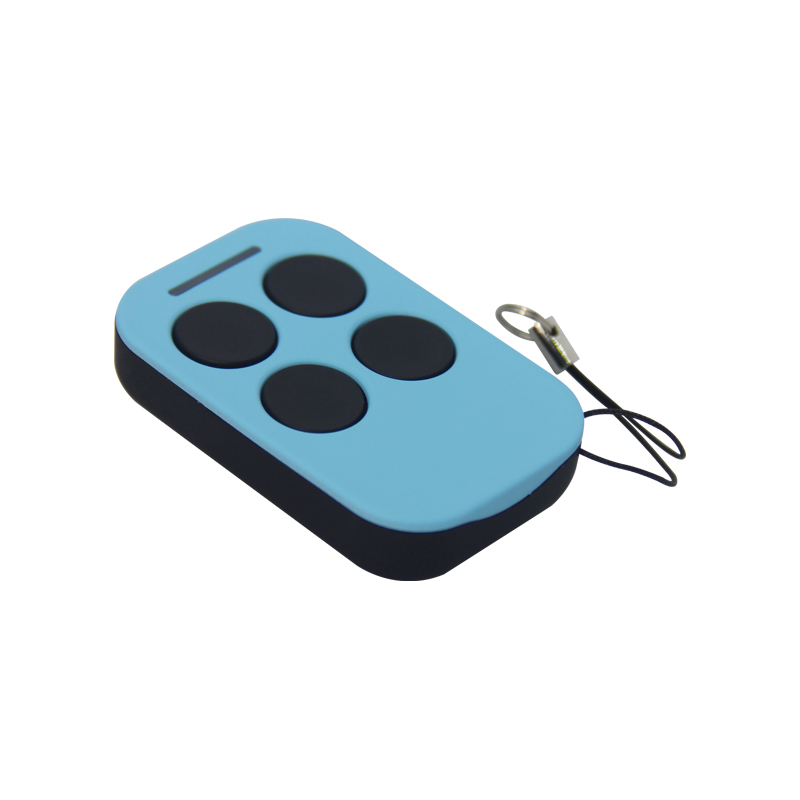

Multi-Frequency Garage Door Remote Control Read More
